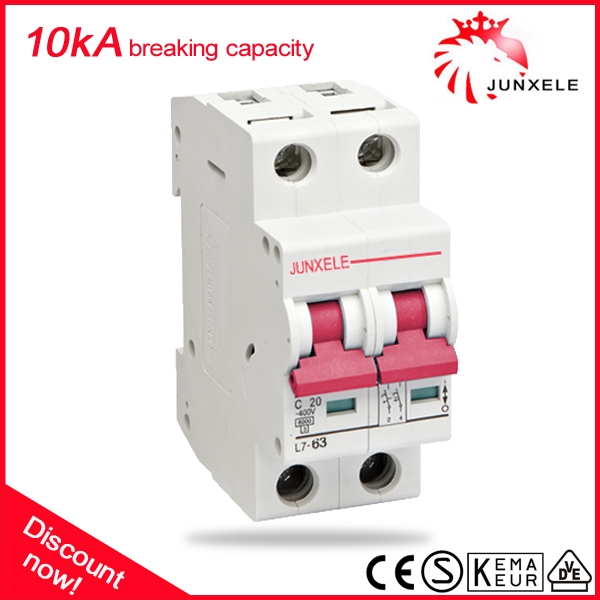

10kA mcb circuit breaker copy of Moeller

Rated current In

A

1,2,3,4,6,10,16,20,25,32,40,50,63

Electrical

features

Poles

1P,2P,3P,4P

Rated voltage Ue

        V

230/400

Insulation voltage Ui

V

500

Rated frequency

50/60Hz

Rated breaking capacity

A

10000

Energy limiting class

3

Rated impulse withstand

voltage (1.2/50)Uimp

V

6000

Dielectric test voltage at

ind .Freq.for 1min

kV

2

Pollution degree                      2

Power loss per pole

          Rated current(A)

Max power loss per pole (W)

            1,2,3,4,6,10

2

            16,20,25,32

3.5

            40,50,63

5

Thermo-magnetic release

Characteristic

B,C,D

Mechanical

features

Electrical life                          8000

Mechanical life                        20000

Contact position indicator                Yes

Protection degree                      IP40

Reference temperature for

Setting of thermal element

°C

30

Ambient temperature (with

daily average≤35°C)

°C

-5…..+40

Storage temperature

°C

-25….+70

Installation

Terminal connection type

Cable /U-type busbar/pin-type busbar

Terminal size top/bottom

for cable

mm2

25

AWG

18-3

Terminal size top/bottom for

busbar

mm2

25

AWG

18-3

Tightening torque

N*m

In-Ibs

2.0

22

Mounting

On DIN rail 35mm

Connection

From top and bottom
